E-Commerce Data Quality & Lineage Platform

What the Problem was

I built this to tackle a problem every data team hits: bad data reaches dashboards, and nobody knows where it broke or how to fix it.

In an e-commerce pipeline, that can mean revenue dashboards drift, product metrics look inconsistent, and the team has to manually trace raw tables, transformations, and downstream models just to understand what changed.

How I solved it

This pipeline covers the full journey of e-commerce data: from raw orders landing in S3, through transformation and quality checks with dbt, to a Marquez catalog that tracks lineage automatically.

The goal was to make the pipeline observable from ingestion to analytics, with automated tests catching data issues before they reach dashboards.

Architecture

• AWS S3 - landing zone for raw data (simulated in the demo; Terraform provisions the bucket).
• Apache Airflow - schedules the DAG and coordinates every step.
• PostgreSQL - warehouse layers: raw, staging, and analytics.
• dbt - SQL transformations plus 24 data quality tests on every run.
• OpenLineage + Marquez - captures lineage for each model without manual docs.
• Terraform - provisions S3 on AWS.

Workflow

1. Load raw - orders, users, products, and line items into the raw schema.
2. Stage - dbt builds four staging views with clean names, types, and conventions.
3. Marts - dbt builds dim_users, dim_products, and fct_orders for analytics.
4. Tests - 24 automated checks run before the data is trusted by dashboards.
5. Lineage capture - OpenLineage emits run metadata into Marquez.

Data quality examples

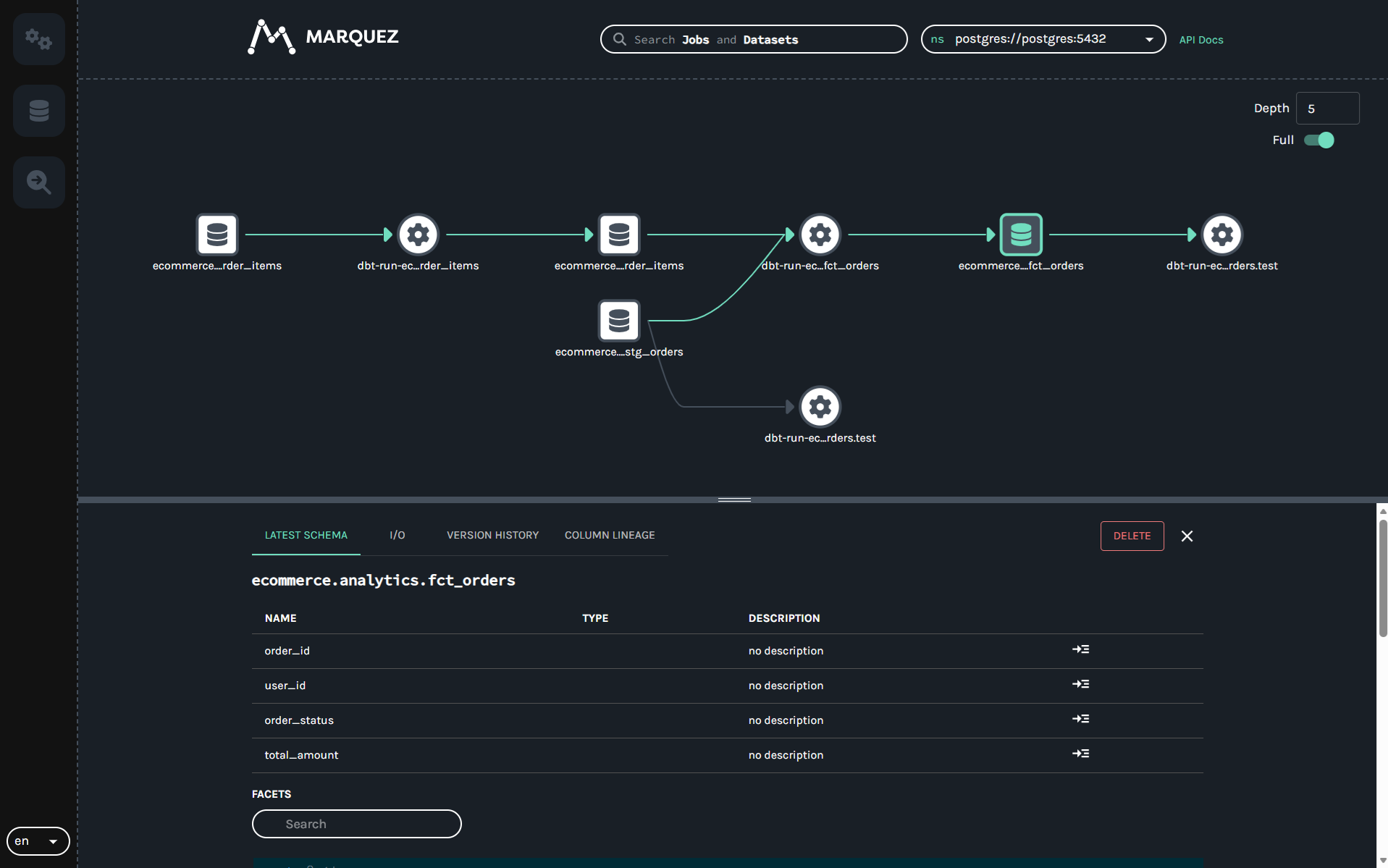

Lineage in Marquez

After each run you can open Marquez, pick the Postgres namespace, and open fct_orders to see the full graph back to raw sources. That makes “revenue looks wrong” investigations fast.

Run it locally

You need Docker and Docker Compose.

git clone https://github.com/azzammasood/ecommerce-data-quality-lineage-platform.git
cd ecommerce-data-quality-lineage-platform
docker compose up -d

Then open Airflow at http://localhost:8080 (admin / admin) and Marquez at http://localhost:3000. Turn on the DAG ecommerce_data_quality_and_lineage and trigger a run.

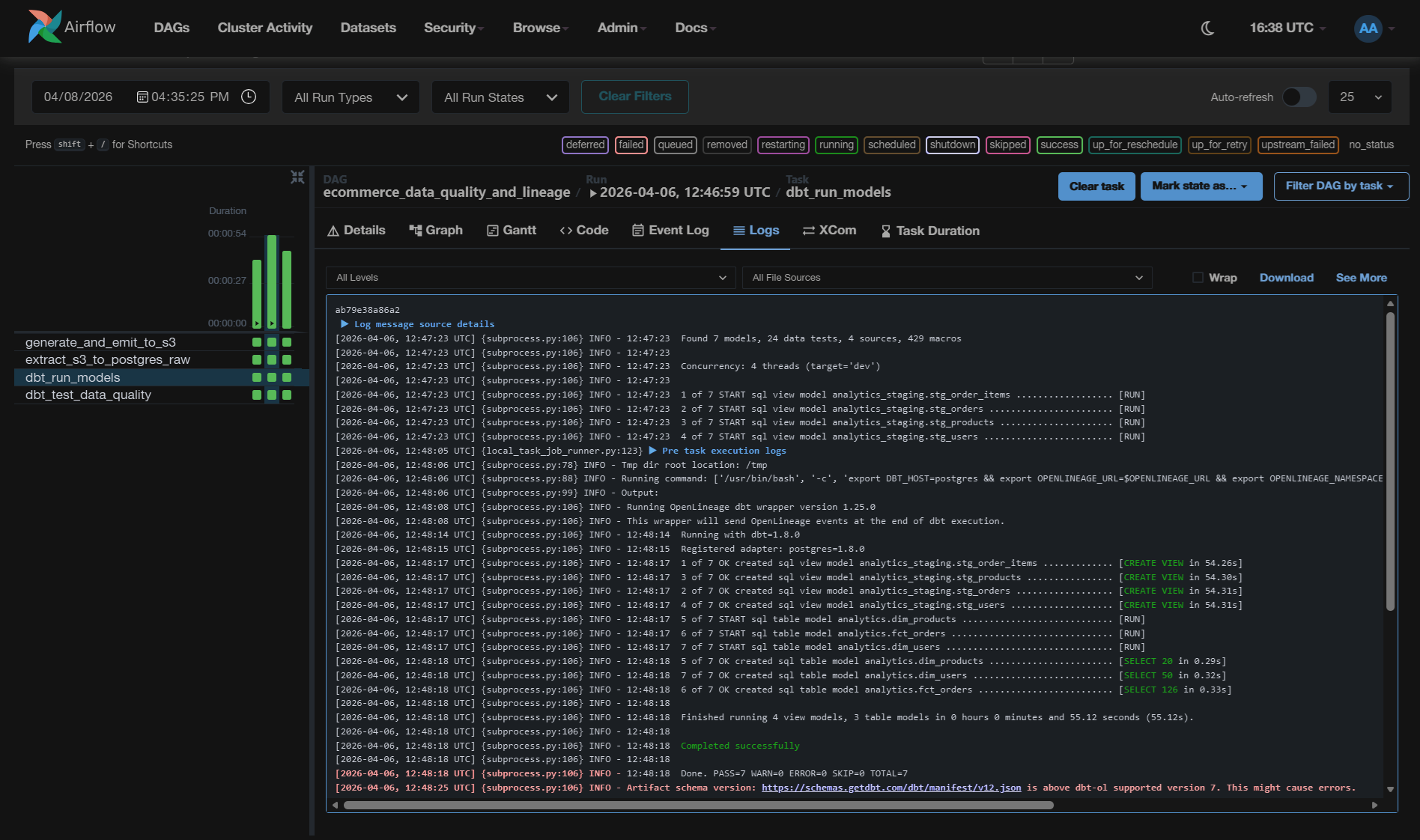

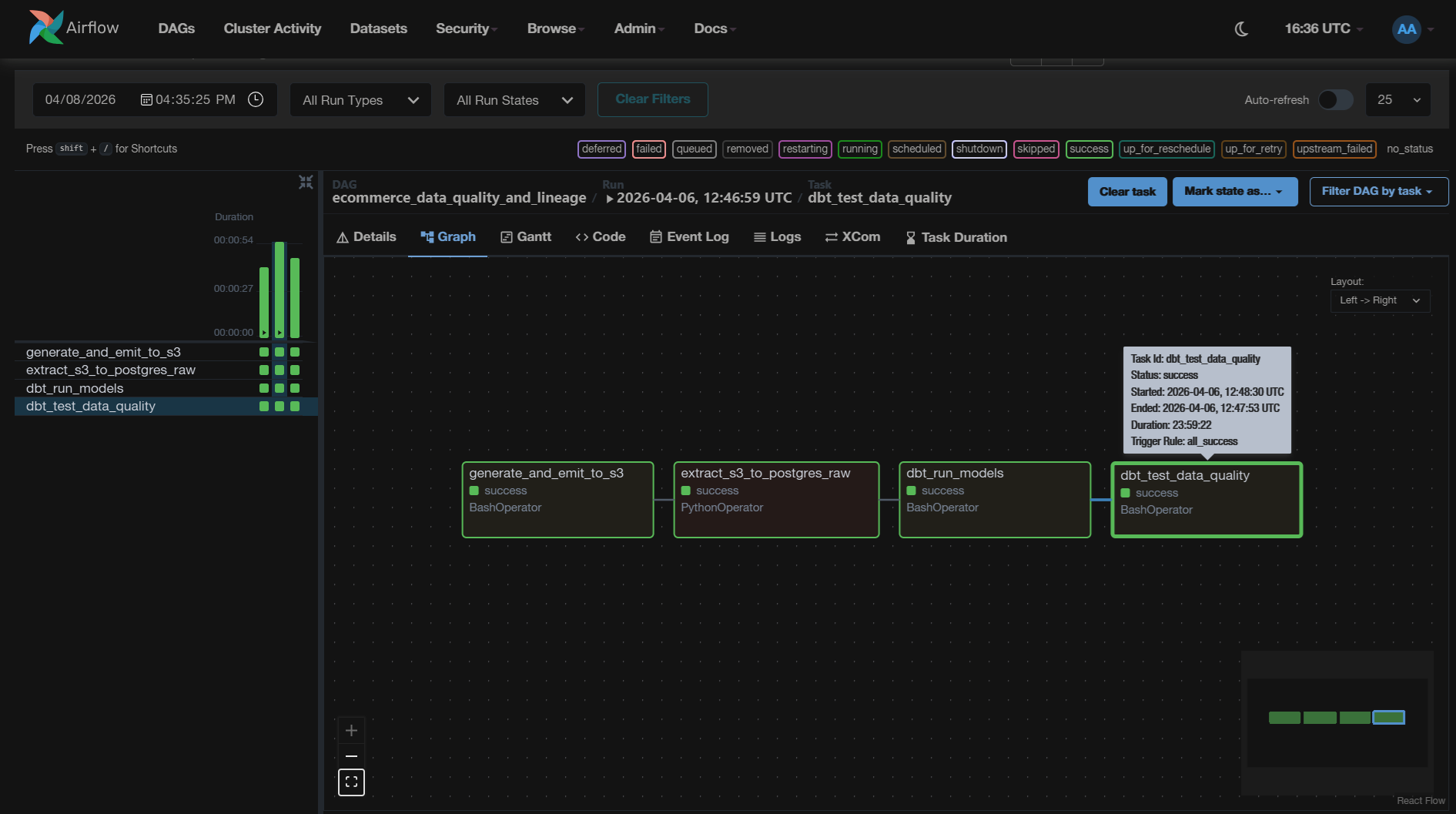

Screenshots

If this project helped you, consider giving it a star on GitHub.
